- Material: N-BK7
- Diameter tolerance: +0/- 0.1 mm
- Thickness tolerance: +/- 0.2 mm

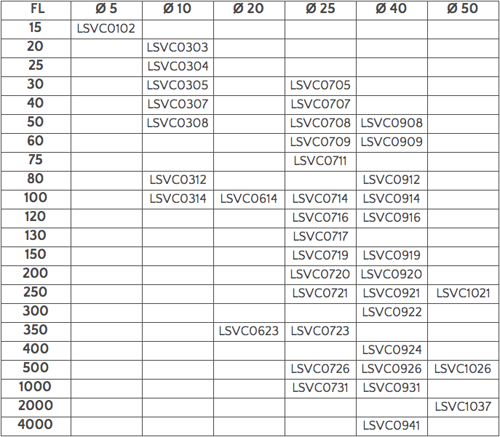

- Standard focal length and diameter: chart below
- Focal length tolerance: +/- 1%
- Clear aperture: 90%
- On request: other dimensions and focal lengths
- Material: N-BK7
- Diameter tolerance: +0/- 0.1 mm
- Thickness tolerance: +/- 0.2 mm
- Standard focal length and diameter: chart below
- Focal length tolerance: +/- 1%
- Clear aperture: 90%
- On request: other dimensions and focal lengths
Contact us to know availability of our components or if you need a custom solution.
Other material:
On request: Quartz - BaF₂ - CaF₂ - MgF₂ - LiF - Al₂0₃ - Ge - Si - ZnS - ZnSe - etc...
Any antireflection coating are available : V coating or broadband coating.
